Guide to modem buttons and ports

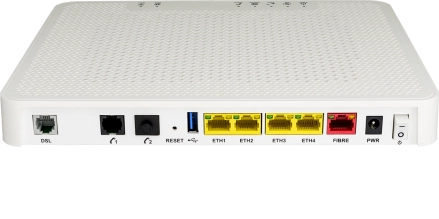

This list shows you what the different buttons and ports on your modem are used for.
Connect the power supply to the power plug and to a power point.
Tap On/Off to turn your modem on or off.
Connect the grey network cable to the "DSL" port.
Wall phone socket
Connect a phone to the phone port.
Connect the red network cable to the "FIBRE" port.
Connect your computer or game console to the "ETH1" port.
Factory reset button
Tap the Factory reset button to restore the factory default settings.

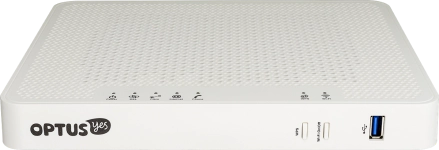

Front USB port
Connect USB storage device to the front "USB" port.
Back USB port
Connect USB storage device to the back "USB" port.
"Wi-Fi On/Off" button
Tap the "Wi-Fi On/Off" button to turn the Wi-Fi signal on or off.
Tap the "WPS" button to connect a WPS device.
