How to
Set up your mobile phone for MMS
An MMS is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive MMS as soon as you've inserted your SIM. If this isn't the case, you can set up your mobile phone for MMS manually.
Find "Data accounts"
Create new data connection
Enter APN
Select authentication type
Select MMS server
Select connection type
Turn on use of proxy
Enter IP address
Enter port number
Save data connection
Return to the home screen
Find "Data account"
Activate data connection
Return to the home screen
Tap the Navigation key.
Select Settings.
Select Connectivity.

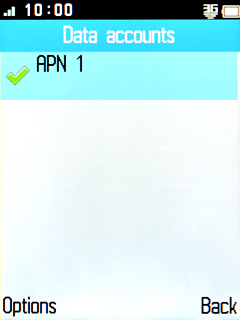

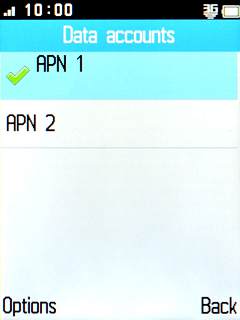

Select Data accounts.

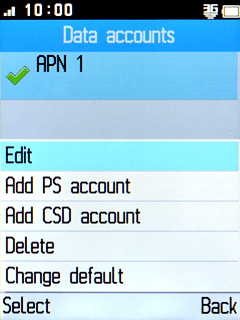

Tap the Left selection key.
Select Add PS account.

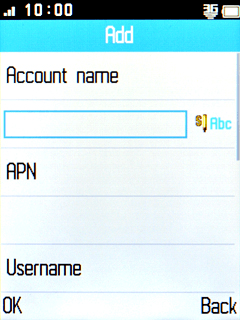

Highlight the field below "Account name" and key in Optus MMS.
Highlight the field below "APN" and key in mms.

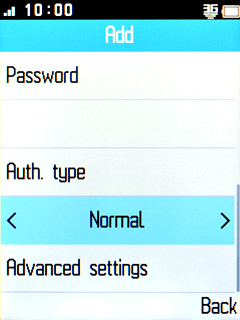

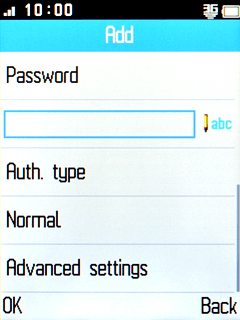

Highlight the field below "Auth. type".
Tap Navigation key right or Navigation key left to select Normal.
Select Advanced settings.

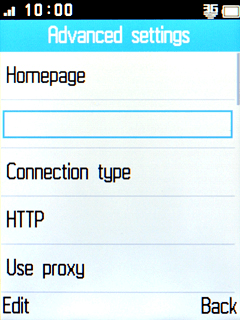

Highlight the field below "Homepage" and key in http://mmsc.optus.com.au:8002/.

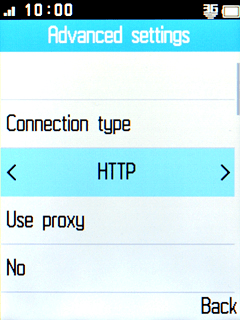

Highlight the field below "Connection type".
Tap Navigation key right or Navigation key left to select HTTP.

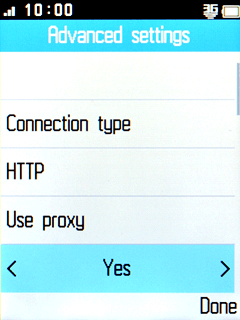

Highlight the field below "Use proxy".
Tap Navigation key right or Navigation key left to select Yes.

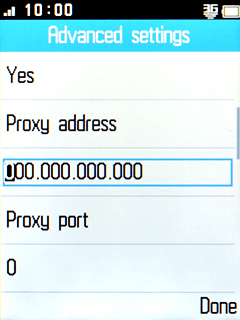

Highlight the field below "Proxy address" and key in 061.088.190.010.
Highlight the field below "Proxy port" and key in 8070.
Tap the Right selection key.
Tap Disconnect to return to the home screen.
Tap the Navigation key.

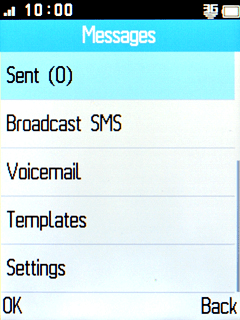

Select Messages.

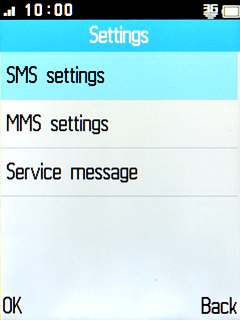

Select Settings.

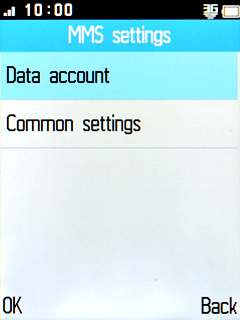

Select MMS settings.

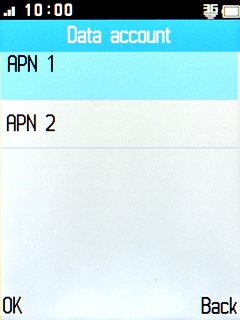

Select Data account.
Highlight the required data connection.
Tap the Left selection key.
Tap Disconnect to return to the home screen.
